1. Product Qualities and Structural Honesty
1.1 Inherent Characteristics of Silicon Carbide

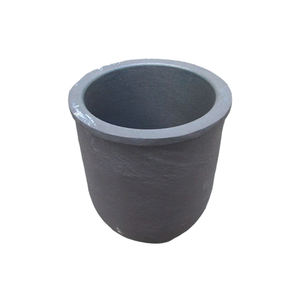

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic substance made up of silicon and carbon atoms prepared in a tetrahedral lattice structure, primarily existing in over 250 polytypic forms, with 6H, 4H, and 3C being the most highly relevant.
Its solid directional bonding imparts extraordinary hardness (Mohs ~ 9.5), high thermal conductivity (80– 120 W/(m Ā· K )for pure single crystals), and superior chemical inertness, making it among one of the most robust products for extreme atmospheres.
The wide bandgap (2.9– 3.3 eV) ensures excellent electric insulation at room temperature level and high resistance to radiation damage, while its low thermal expansion coefficient (~ 4.0 Ć 10 ā»ā¶/ K) adds to remarkable thermal shock resistance.
These innate residential properties are preserved even at temperatures surpassing 1600 Ā° C, enabling SiC to keep structural integrity under long term direct exposure to molten steels, slags, and responsive gases.
Unlike oxide ceramics such as alumina, SiC does not respond easily with carbon or form low-melting eutectics in minimizing environments, a crucial benefit in metallurgical and semiconductor processing.
When made right into crucibles– vessels developed to have and warm materials– SiC exceeds traditional materials like quartz, graphite, and alumina in both life expectancy and process dependability.
1.2 Microstructure and Mechanical Security
The performance of SiC crucibles is closely tied to their microstructure, which depends on the manufacturing approach and sintering additives used.
Refractory-grade crucibles are normally generated using reaction bonding, where permeable carbon preforms are infiltrated with liquified silicon, developing Ī²-SiC through the reaction Si(l) + C(s) ā SiC(s).
This process yields a composite framework of primary SiC with recurring cost-free silicon (5– 10%), which enhances thermal conductivity but might restrict use above 1414 Ā° C(the melting point of silicon).
Conversely, completely sintered SiC crucibles are made with solid-state or liquid-phase sintering utilizing boron and carbon or alumina-yttria ingredients, achieving near-theoretical thickness and greater pureness.
These exhibit remarkable creep resistance and oxidation stability yet are a lot more pricey and difficult to produce in large sizes.

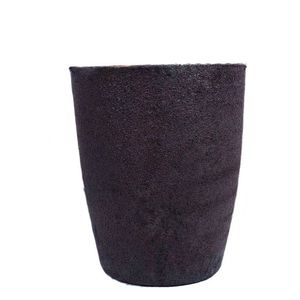

( Silicon Carbide Crucibles)
The fine-grained, interlocking microstructure of sintered SiC provides outstanding resistance to thermal fatigue and mechanical disintegration, important when managing liquified silicon, germanium, or III-V compounds in crystal development procedures.
Grain limit design, consisting of the control of secondary stages and porosity, plays a crucial role in determining lasting resilience under cyclic home heating and hostile chemical atmospheres.
2. Thermal Efficiency and Environmental Resistance
2.1 Thermal Conductivity and Heat Distribution
Among the defining advantages of SiC crucibles is their high thermal conductivity, which allows quick and uniform heat transfer throughout high-temperature handling.
Unlike low-conductivity materials like fused silica (1– 2 W/(m Ā· K)), SiC effectively disperses thermal energy throughout the crucible wall, reducing local locations and thermal slopes.
This uniformity is vital in procedures such as directional solidification of multicrystalline silicon for photovoltaics, where temperature level homogeneity straight impacts crystal high quality and defect density.
The mix of high conductivity and reduced thermal growth causes an extremely high thermal shock criterion (R = k(1 ā Ī½)Ī±/ Ļ), making SiC crucibles immune to cracking during fast home heating or cooling down cycles.
This allows for faster heater ramp prices, boosted throughput, and lowered downtime as a result of crucible failure.
In addition, the product’s capability to hold up against duplicated thermal biking without considerable destruction makes it perfect for batch handling in commercial heating systems running over 1500 Ā° C.
2.2 Oxidation and Chemical Compatibility
At raised temperatures in air, SiC goes through easy oxidation, developing a protective layer of amorphous silica (SiO ā) on its surface area: SiC + 3/2 O TWO ā SiO ā + CO.
This glassy layer densifies at high temperatures, working as a diffusion barrier that slows down more oxidation and maintains the underlying ceramic structure.
Nevertheless, in decreasing atmospheres or vacuum conditions– common in semiconductor and steel refining– oxidation is reduced, and SiC remains chemically stable against liquified silicon, light weight aluminum, and many slags.
It withstands dissolution and reaction with liquified silicon up to 1410 Ā° C, although extended direct exposure can result in small carbon pickup or interface roughening.
Most importantly, SiC does not introduce metal contaminations right into sensitive melts, a key demand for electronic-grade silicon production where contamination by Fe, Cu, or Cr should be maintained listed below ppb degrees.
Nevertheless, care must be taken when refining alkaline planet metals or extremely responsive oxides, as some can rust SiC at extreme temperature levels.
3. Production Processes and Quality Control
3.1 Fabrication Strategies and Dimensional Control
The manufacturing of SiC crucibles involves shaping, drying out, and high-temperature sintering or seepage, with techniques picked based upon needed purity, dimension, and application.
Common forming strategies include isostatic pushing, extrusion, and slip casting, each providing various levels of dimensional precision and microstructural uniformity.
For big crucibles used in photovoltaic or pv ingot casting, isostatic pushing makes sure consistent wall surface thickness and density, decreasing the threat of crooked thermal growth and failing.
Reaction-bonded SiC (RBSC) crucibles are economical and extensively utilized in factories and solar markets, though recurring silicon restrictions optimal service temperature.
Sintered SiC (SSiC) versions, while a lot more pricey, deal premium pureness, strength, and resistance to chemical attack, making them ideal for high-value applications like GaAs or InP crystal development.
Precision machining after sintering might be called for to accomplish tight resistances, especially for crucibles used in vertical gradient freeze (VGF) or Czochralski (CZ) systems.
Surface area ending up is critical to lessen nucleation sites for problems and make certain smooth thaw circulation during spreading.
3.2 Quality Control and Efficiency Validation
Rigorous quality control is important to guarantee integrity and longevity of SiC crucibles under demanding functional conditions.
Non-destructive analysis methods such as ultrasonic testing and X-ray tomography are employed to identify interior fractures, voids, or thickness variants.
Chemical evaluation through XRF or ICP-MS validates reduced levels of metal impurities, while thermal conductivity and flexural stamina are measured to validate product consistency.
Crucibles are frequently based on simulated thermal cycling tests prior to delivery to determine possible failing modes.
Batch traceability and qualification are basic in semiconductor and aerospace supply chains, where part failure can bring about pricey manufacturing losses.
4. Applications and Technological Influence
4.1 Semiconductor and Photovoltaic Industries
Silicon carbide crucibles play an essential role in the manufacturing of high-purity silicon for both microelectronics and solar cells.
In directional solidification furnaces for multicrystalline photovoltaic ingots, large SiC crucibles function as the key container for molten silicon, sustaining temperature levels above 1500 Ā° C for several cycles.
Their chemical inertness avoids contamination, while their thermal security ensures uniform solidification fronts, causing higher-quality wafers with less misplacements and grain boundaries.
Some manufacturers layer the internal surface area with silicon nitride or silica to better reduce adhesion and help with ingot release after cooling down.
In research-scale Czochralski development of compound semiconductors, smaller SiC crucibles are made use of to hold melts of GaAs, InSb, or CdTe, where very little sensitivity and dimensional security are critical.
4.2 Metallurgy, Shop, and Emerging Technologies
Past semiconductors, SiC crucibles are essential in steel refining, alloy prep work, and laboratory-scale melting operations entailing light weight aluminum, copper, and rare-earth elements.
Their resistance to thermal shock and disintegration makes them optimal for induction and resistance furnaces in factories, where they last longer than graphite and alumina choices by several cycles.
In additive production of reactive metals, SiC containers are used in vacuum induction melting to avoid crucible failure and contamination.
Emerging applications include molten salt activators and concentrated solar energy systems, where SiC vessels might have high-temperature salts or liquid metals for thermal energy storage space.
With recurring advances in sintering innovation and finishing engineering, SiC crucibles are positioned to sustain next-generation materials processing, enabling cleaner, extra efficient, and scalable commercial thermal systems.
In summary, silicon carbide crucibles represent a crucial allowing innovation in high-temperature material synthesis, combining remarkable thermal, mechanical, and chemical efficiency in a solitary engineered element.
Their widespread fostering across semiconductor, solar, and metallurgical markets emphasizes their role as a keystone of modern industrial porcelains.
