1. Fundamental Concepts and Process Categories
1.1 Meaning and Core Mechanism

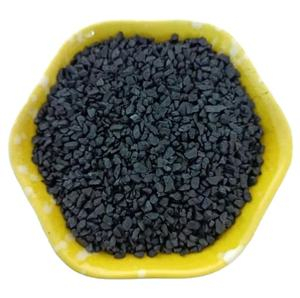

(3d printing alloy powder)
Steel 3D printing, likewise referred to as steel additive production (AM), is a layer-by-layer fabrication strategy that develops three-dimensional metallic elements straight from electronic versions making use of powdered or cable feedstock.
Unlike subtractive methods such as milling or turning, which get rid of product to achieve form, metal AM includes material just where required, allowing extraordinary geometric complexity with marginal waste.
The process begins with a 3D CAD version sliced into thin straight layers (commonly 20– 100 µm thick). A high-energy resource– laser or electron beam– selectively melts or merges metal particles according to each layer’s cross-section, which strengthens upon cooling to create a dense solid.
This cycle repeats until the full component is built, usually within an inert ambience (argon or nitrogen) to avoid oxidation of reactive alloys like titanium or aluminum.
The resulting microstructure, mechanical residential or commercial properties, and surface finish are regulated by thermal history, scan approach, and material attributes, calling for accurate control of process criteria.
1.2 Major Steel AM Technologies
The two dominant powder-bed fusion (PBF) modern technologies are Selective Laser Melting (SLM) and Electron Light Beam Melting (EBM).
SLM makes use of a high-power fiber laser (commonly 200– 1000 W) to fully melt metal powder in an argon-filled chamber, creating near-full density (> 99.5%) get rid of great function resolution and smooth surface areas.
EBM uses a high-voltage electron beam of light in a vacuum setting, operating at higher construct temperature levels (600– 1000 ° C), which minimizes recurring stress and makes it possible for crack-resistant processing of brittle alloys like Ti-6Al-4V or Inconel 718.
Past PBF, Directed Energy Deposition (DED)– including Laser Metal Deposition (LMD) and Cord Arc Ingredient Manufacturing (WAAM)– feeds steel powder or wire right into a molten swimming pool produced by a laser, plasma, or electric arc, suitable for massive fixings or near-net-shape components.
Binder Jetting, though much less fully grown for metals, includes transferring a liquid binding agent onto steel powder layers, adhered to by sintering in a heating system; it offers broadband yet lower density and dimensional accuracy.
Each technology balances trade-offs in resolution, build price, material compatibility, and post-processing needs, assisting choice based upon application needs.
2. Materials and Metallurgical Considerations
2.1 Usual Alloys and Their Applications
Metal 3D printing supports a wide range of engineering alloys, consisting of stainless steels (e.g., 316L, 17-4PH), device steels (H13, Maraging steel), nickel-based superalloys (Inconel 625, 718), titanium alloys (Ti-6Al-4V, CP-Ti), light weight aluminum (AlSi10Mg, Sc-modified Al), and cobalt-chrome (CoCrMo).
Stainless steels supply deterioration resistance and modest toughness for fluidic manifolds and medical instruments.

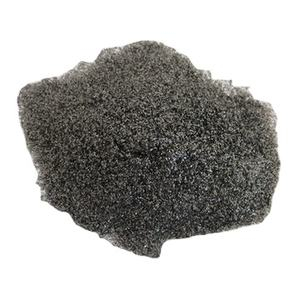

(3d printing alloy powder)
Nickel superalloys master high-temperature settings such as turbine blades and rocket nozzles as a result of their creep resistance and oxidation stability.
Titanium alloys combine high strength-to-density proportions with biocompatibility, making them perfect for aerospace brackets and orthopedic implants.
Light weight aluminum alloys make it possible for light-weight structural components in automotive and drone applications, though their high reflectivity and thermal conductivity pose obstacles for laser absorption and thaw pool security.
Product growth continues with high-entropy alloys (HEAs) and functionally rated compositions that change residential or commercial properties within a solitary part.
2.2 Microstructure and Post-Processing Needs
The quick heating and cooling down cycles in steel AM produce distinct microstructures– often fine cellular dendrites or columnar grains aligned with warm circulation– that vary dramatically from cast or functioned counterparts.
While this can improve strength via grain refinement, it might also present anisotropy, porosity, or recurring stress and anxieties that endanger tiredness efficiency.
Consequently, almost all steel AM components call for post-processing: tension relief annealing to reduce distortion, warm isostatic pushing (HIP) to shut internal pores, machining for critical resistances, and surface completing (e.g., electropolishing, shot peening) to improve tiredness life.
Warm therapies are tailored to alloy systems– as an example, service aging for 17-4PH to achieve rainfall hardening, or beta annealing for Ti-6Al-4V to enhance ductility.
Quality control counts on non-destructive screening (NDT) such as X-ray computed tomography (CT) and ultrasonic inspection to spot interior defects invisible to the eye.
3. Layout Freedom and Industrial Influence
3.1 Geometric Advancement and Functional Combination
Steel 3D printing opens design standards difficult with standard manufacturing, such as interior conformal cooling networks in shot mold and mildews, latticework frameworks for weight reduction, and topology-optimized tons courses that reduce product use.
Components that when required setting up from dozens of components can currently be printed as monolithic devices, lowering joints, bolts, and potential failing points.
This practical combination boosts reliability in aerospace and clinical devices while cutting supply chain complexity and supply costs.
Generative design formulas, combined with simulation-driven optimization, instantly produce natural forms that meet performance targets under real-world loads, pushing the limits of performance.
Modification at scale becomes possible– oral crowns, patient-specific implants, and bespoke aerospace installations can be produced financially without retooling.
3.2 Sector-Specific Fostering and Economic Value
Aerospace leads fostering, with firms like GE Aeronautics printing fuel nozzles for LEAP engines– settling 20 components right into one, minimizing weight by 25%, and boosting longevity fivefold.
Medical device producers take advantage of AM for permeable hip stems that motivate bone ingrowth and cranial plates matching individual anatomy from CT scans.
Automotive companies utilize metal AM for rapid prototyping, light-weight brackets, and high-performance racing parts where efficiency outweighs expense.
Tooling industries gain from conformally cooled mold and mildews that reduced cycle times by approximately 70%, boosting efficiency in mass production.
While machine expenses stay high (200k– 2M), decreasing prices, improved throughput, and licensed material databases are broadening availability to mid-sized enterprises and service bureaus.
4. Obstacles and Future Instructions
4.1 Technical and Certification Obstacles
In spite of development, steel AM encounters hurdles in repeatability, credentials, and standardization.
Small variations in powder chemistry, wetness content, or laser emphasis can alter mechanical buildings, demanding rigorous procedure control and in-situ tracking (e.g., melt pool video cameras, acoustic sensors).
Certification for safety-critical applications– particularly in aviation and nuclear industries– calls for extensive statistical recognition under structures like ASTM F42, ISO/ASTM 52900, and NADCAP, which is time-consuming and pricey.
Powder reuse methods, contamination threats, and absence of universal material specifications additionally make complex commercial scaling.
Efforts are underway to establish digital twins that connect procedure criteria to part performance, enabling predictive quality control and traceability.
4.2 Emerging Patterns and Next-Generation Equipments
Future innovations include multi-laser systems (4– 12 lasers) that substantially boost build rates, hybrid devices integrating AM with CNC machining in one system, and in-situ alloying for personalized compositions.
Artificial intelligence is being integrated for real-time issue detection and flexible criterion correction during printing.
Sustainable campaigns focus on closed-loop powder recycling, energy-efficient beam resources, and life process assessments to quantify ecological advantages over conventional methods.
Research right into ultrafast lasers, cool spray AM, and magnetic field-assisted printing might get rid of present constraints in reflectivity, recurring tension, and grain alignment control.
As these technologies grow, metal 3D printing will certainly transition from a particular niche prototyping tool to a mainstream manufacturing approach– improving exactly how high-value steel parts are designed, manufactured, and released throughout sectors.
5. Provider
TRUNNANO is a supplier of Spherical Tungsten Powder with over 12 years of experience in nano-building energy conservation and nanotechnology development. It accepts payment via Credit Card, T/T, West Union and Paypal. Trunnano will ship the goods to customers overseas through FedEx, DHL, by air, or by sea. If you want to know more about Spherical Tungsten Powder, please feel free to contact us and send an inquiry.
