1. Material Fundamentals and Microstructural Layout
1.1 Composition and Crystallographic Stability of Alumina

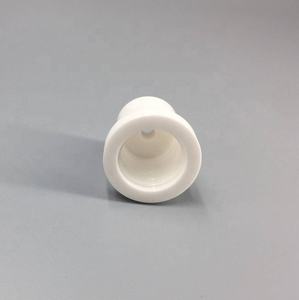

(Alumina Ceramic Nozzles)
Alumina (Al ₂ O FIVE), especially in its alpha stage, is a completely oxidized ceramic with a corundum-type hexagonal close-packed framework, providing extraordinary thermal security, chemical inertness, and mechanical toughness at elevated temperature levels.
High-purity alumina (typically 95– 99.9% Al Two O SIX) is chosen for nozzle applications as a result of its minimal contamination content, which minimizes grain boundary weakening and enhances resistance to thermal and chemical destruction.
The microstructure, consisting of penalty, equiaxed grains, is engineered throughout sintering to reduce porosity and maximize thickness, straight affecting the nozzle’s erosion resistance and architectural honesty under high-velocity liquid flow.
Ingredients such as MgO are often introduced in trace amounts to prevent irregular grain growth during sintering, making sure an uniform microstructure that sustains long-lasting dependability.
1.2 Mechanical and Thermal Characteristics Relevant to Nozzle Efficiency
Alumina porcelains exhibit a Vickers solidity going beyond 1800 HV, making them very immune to rough wear from particulate-laden fluids, an important attribute in applications such as sandblasting and abrasive waterjet cutting.
With a flexural toughness of 300– 500 MPa and a compressive stamina over 2 GPa, alumina nozzles keep dimensional security under high-pressure operation, commonly ranging from 100 to 400 MPa in industrial systems.
Thermally, alumina maintains its mechanical residential or commercial properties up to 1600 ° C, with a reduced thermal development coefficient (~ 8 × 10 ⁻⁶/ K) that supplies excellent resistance to thermal shock– essential when revealed to quick temperature fluctuations throughout startup or closure cycles.
Its thermal conductivity (~ 30 W/m · K) is sufficient to dissipate local warm without causing thermal slopes that could lead to splitting, balancing insulation and heat monitoring requirements.
2. Manufacturing Processes and Geometric Precision
2.1 Shaping and Sintering Strategies for Nozzle Fabrication
The manufacturing of alumina ceramic nozzles begins with high-purity alumina powder, which is refined into an environment-friendly body utilizing methods such as cold isostatic pressing (CIP), shot molding, or extrusion, relying on the preferred geometry and set size.
( Alumina Ceramic Nozzles)
Cold isostatic pressing uses consistent stress from all directions, producing a homogeneous density distribution vital for lessening problems throughout sintering.
Shot molding is utilized for complex nozzle shapes with interior tapers and great orifices, allowing high dimensional accuracy and reproducibility in mass production.
After forming, the environment-friendly compacts go through a two-stage thermal treatment: debinding to get rid of organic binders and sintering at temperatures in between 1500 ° C and 1650 ° C to achieve near-theoretical thickness through solid-state diffusion.
Accurate control of sintering environment and heating/cooling prices is important to avoid bending, cracking, or grain coarsening that can compromise nozzle performance.
2.2 Machining, Polishing, and Quality Control
Post-sintering, alumina nozzles typically call for accuracy machining to attain tight tolerances, particularly in the orifice area where flow dynamics are most sensitive to surface finish and geometry.
Diamond grinding and splashing are used to improve interior and exterior surface areas, attaining surface area roughness values below 0.1 µm, which lowers flow resistance and stops fragment buildup.
The orifice, usually varying from 0.3 to 3.0 mm in diameter, have to be free of micro-cracks and chamfers to ensure laminar circulation and constant spray patterns.
Non-destructive screening approaches such as optical microscopy, X-ray assessment, and stress biking examinations are utilized to validate architectural stability and performance consistency prior to deployment.
Custom-made geometries, including convergent-divergent (de Laval) profiles for supersonic flow or multi-hole varieties for fan spray patterns, are significantly fabricated utilizing advanced tooling and computer-aided design (CAD)-driven production.
3. Functional Benefits Over Different Nozzle Products
3.1 Superior Erosion and Corrosion Resistance
Contrasted to metallic (e.g., tungsten carbide, stainless-steel) or polymer nozzles, alumina shows much greater resistance to abrasive wear, especially in environments involving silica sand, garnet, or various other hard abrasives used in surface area preparation and cutting.
Steel nozzles deteriorate rapidly as a result of micro-fracturing and plastic deformation, needing constant substitute, whereas alumina nozzles can last 3– 5 times longer, significantly minimizing downtime and operational expenses.
Additionally, alumina is inert to a lot of acids, antacid, and solvents, making it suitable for chemical splashing, etching, and cleansing processes where metallic elements would certainly corrode or pollute the liquid.
This chemical security is particularly valuable in semiconductor manufacturing, pharmaceutical handling, and food-grade applications calling for high pureness.
3.2 Thermal and Electrical Insulation Residence
Alumina’s high electrical resistivity (> 10 ¹⁴ Ω · centimeters) makes it suitable for usage in electrostatic spray finish systems, where it prevents cost leakage and makes sure uniform paint atomization.
Its thermal insulation ability allows safe procedure in high-temperature spraying atmospheres, such as flame spraying or thermal cleaning, without warm transfer to surrounding parts.
Unlike steels, alumina does not catalyze undesirable chain reaction in reactive fluid streams, maintaining the integrity of delicate formulations.
4. Industrial Applications and Technical Impact
4.1 Roles in Abrasive Jet Machining and Surface Area Treatment
Alumina ceramic nozzles are important in abrasive blasting systems for rust elimination, paint stripping, and surface area texturing in vehicle, aerospace, and construction industries.
Their capacity to keep a regular orifice size over extended usage ensures consistent unpleasant velocity and effect angle, straight affecting surface area finish quality and process repeatability.
In abrasive waterjet cutting, alumina focusing tubes lead the high-pressure water-abrasive combination, holding up against erosive forces that would rapidly weaken softer products.
4.2 Use in Additive Manufacturing, Spray Finish, and Fluid Control
In thermal spray systems, such as plasma and fire splashing, alumina nozzles straight high-temperature gas circulations and liquified particles onto substratums, taking advantage of their thermal shock resistance and dimensional stability.
They are also utilized in precision spray nozzles for agricultural chemicals, inkjet systems, and gas atomization, where wear resistance guarantees long-term application precision.
In 3D printing, specifically in binder jetting and product extrusion, alumina nozzles supply great powders or viscous pastes with marginal blocking or use.
Emerging applications include microfluidic systems and lab-on-a-chip devices, where miniaturized alumina elements provide resilience and biocompatibility.
In recap, alumina ceramic nozzles stand for a vital intersection of materials science and industrial design.
Their exceptional mix of solidity, thermal stability, and chemical resistance enables reliable efficiency in several of the most demanding liquid handling environments.
As industrial processes press toward greater pressures, finer resistances, and much longer service intervals, alumina ceramics remain to establish the criterion for long lasting, high-precision circulation control parts.
