1. Composition and Structural Properties of Fused Quartz
1.1 Amorphous Network and Thermal Stability

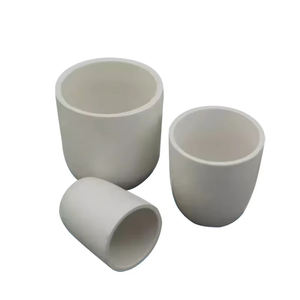

(Quartz Crucibles)
Quartz crucibles are high-temperature containers manufactured from integrated silica, a synthetic type of silicon dioxide (SiO TWO) derived from the melting of all-natural quartz crystals at temperatures exceeding 1700 ° C.
Unlike crystalline quartz, integrated silica possesses an amorphous three-dimensional network of corner-sharing SiO four tetrahedra, which conveys exceptional thermal shock resistance and dimensional security under rapid temperature adjustments.
This disordered atomic framework protects against bosom along crystallographic planes, making integrated silica much less vulnerable to cracking throughout thermal biking contrasted to polycrystalline ceramics.
The material shows a reduced coefficient of thermal expansion (~ 0.5 × 10 ⁻⁶/ K), among the most affordable among design materials, allowing it to hold up against extreme thermal gradients without fracturing– a crucial home in semiconductor and solar cell manufacturing.
Merged silica likewise preserves superb chemical inertness against a lot of acids, liquified steels, and slags, although it can be slowly etched by hydrofluoric acid and warm phosphoric acid.
Its high softening point (~ 1600– 1730 ° C, depending upon pureness and OH content) permits sustained operation at raised temperature levels needed for crystal growth and steel refining procedures.
1.2 Purity Grading and Trace Element Control
The efficiency of quartz crucibles is highly dependent on chemical pureness, especially the focus of metallic contaminations such as iron, sodium, potassium, aluminum, and titanium.
Even trace amounts (parts per million degree) of these contaminants can move right into molten silicon during crystal growth, deteriorating the electrical buildings of the resulting semiconductor material.
High-purity qualities made use of in electronic devices producing generally have over 99.95% SiO ₂, with alkali metal oxides limited to less than 10 ppm and transition steels below 1 ppm.
Impurities originate from raw quartz feedstock or handling tools and are lessened with cautious selection of mineral resources and purification methods like acid leaching and flotation.
Additionally, the hydroxyl (OH) content in fused silica impacts its thermomechanical actions; high-OH kinds supply far better UV transmission yet lower thermal security, while low-OH variants are favored for high-temperature applications due to decreased bubble formation.

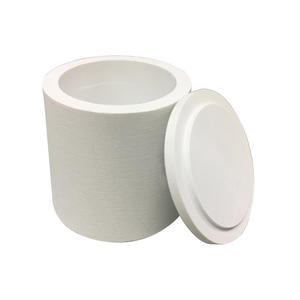

( Quartz Crucibles)
2. Manufacturing Process and Microstructural Design
2.1 Electrofusion and Developing Methods
Quartz crucibles are primarily produced through electrofusion, a process in which high-purity quartz powder is fed into a turning graphite mold within an electric arc heater.
An electric arc produced in between carbon electrodes melts the quartz fragments, which solidify layer by layer to form a smooth, dense crucible form.
This technique creates a fine-grained, uniform microstructure with marginal bubbles and striae, crucial for uniform warm distribution and mechanical integrity.
Alternative approaches such as plasma combination and fire fusion are utilized for specialized applications requiring ultra-low contamination or certain wall density accounts.
After casting, the crucibles undergo regulated air conditioning (annealing) to alleviate internal stress and anxieties and prevent spontaneous cracking throughout service.
Surface area completing, consisting of grinding and brightening, makes sure dimensional accuracy and lowers nucleation websites for unwanted formation during use.
2.2 Crystalline Layer Design and Opacity Control
A defining feature of modern-day quartz crucibles, especially those utilized in directional solidification of multicrystalline silicon, is the engineered internal layer structure.
Throughout manufacturing, the internal surface area is typically dealt with to promote the formation of a thin, regulated layer of cristobalite– a high-temperature polymorph of SiO TWO– upon first home heating.
This cristobalite layer works as a diffusion barrier, minimizing direct communication between molten silicon and the underlying merged silica, consequently decreasing oxygen and metallic contamination.
Furthermore, the existence of this crystalline stage boosts opacity, enhancing infrared radiation absorption and promoting more uniform temperature circulation within the thaw.
Crucible developers very carefully balance the density and connection of this layer to stay clear of spalling or breaking due to quantity adjustments during stage transitions.
3. Functional Efficiency in High-Temperature Applications
3.1 Duty in Silicon Crystal Growth Processes
Quartz crucibles are important in the production of monocrystalline and multicrystalline silicon, functioning as the main container for liquified silicon in Czochralski (CZ) and directional solidification systems (DS).
In the CZ procedure, a seed crystal is dipped right into liquified silicon kept in a quartz crucible and slowly drew upwards while revolving, permitting single-crystal ingots to form.
Although the crucible does not directly call the expanding crystal, communications in between liquified silicon and SiO ₂ walls bring about oxygen dissolution into the melt, which can influence provider lifetime and mechanical strength in finished wafers.
In DS processes for photovoltaic-grade silicon, large-scale quartz crucibles make it possible for the regulated air conditioning of thousands of kilos of molten silicon right into block-shaped ingots.
Right here, finishings such as silicon nitride (Si ₃ N FOUR) are related to the internal surface area to avoid attachment and promote very easy launch of the solidified silicon block after cooling down.
3.2 Degradation Systems and Service Life Limitations
In spite of their toughness, quartz crucibles degrade throughout repeated high-temperature cycles due to several interrelated systems.
Thick flow or deformation occurs at prolonged direct exposure over 1400 ° C, resulting in wall surface thinning and loss of geometric honesty.
Re-crystallization of merged silica into cristobalite creates internal stresses due to volume expansion, possibly creating cracks or spallation that contaminate the melt.
Chemical erosion develops from decrease responses in between liquified silicon and SiO TWO: SiO ₂ + Si → 2SiO(g), generating unpredictable silicon monoxide that escapes and weakens the crucible wall surface.
Bubble formation, driven by caught gases or OH teams, further compromises architectural toughness and thermal conductivity.
These deterioration paths restrict the variety of reuse cycles and demand precise process control to take full advantage of crucible life-span and item yield.
4. Emerging Technologies and Technological Adaptations
4.1 Coatings and Composite Alterations
To boost performance and durability, advanced quartz crucibles integrate functional coverings and composite structures.
Silicon-based anti-sticking layers and drugged silica coverings boost release characteristics and lower oxygen outgassing throughout melting.
Some manufacturers incorporate zirconia (ZrO ₂) bits right into the crucible wall to increase mechanical toughness and resistance to devitrification.
Research study is continuous into completely clear or gradient-structured crucibles created to optimize induction heat transfer in next-generation solar heating system layouts.
4.2 Sustainability and Recycling Difficulties
With raising need from the semiconductor and solar industries, lasting use of quartz crucibles has actually become a top priority.
Spent crucibles contaminated with silicon deposit are difficult to recycle due to cross-contamination dangers, resulting in substantial waste generation.
Initiatives concentrate on developing reusable crucible liners, enhanced cleansing procedures, and closed-loop recycling systems to recover high-purity silica for additional applications.
As tool performances demand ever-higher product pureness, the function of quartz crucibles will certainly continue to advance through innovation in materials scientific research and procedure engineering.
In recap, quartz crucibles represent an essential interface between raw materials and high-performance digital items.
Their distinct mix of pureness, thermal durability, and architectural layout allows the fabrication of silicon-based innovations that power modern-day computer and renewable resource systems.
