1. Material Basics and Structural Characteristic
1.1 Crystal Chemistry and Polymorphism

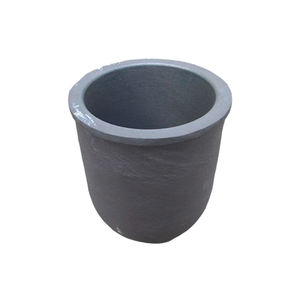

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic composed of silicon and carbon atoms organized in a tetrahedral latticework, developing one of one of the most thermally and chemically durable products understood.
It exists in over 250 polytypic forms, with the 3C (cubic), 4H, and 6H hexagonal structures being most pertinent for high-temperature applications.
The strong Si– C bonds, with bond power going beyond 300 kJ/mol, confer outstanding solidity, thermal conductivity, and resistance to thermal shock and chemical assault.
In crucible applications, sintered or reaction-bonded SiC is favored because of its capability to preserve architectural integrity under extreme thermal gradients and harsh molten environments.
Unlike oxide porcelains, SiC does not undertake turbulent stage changes as much as its sublimation point (~ 2700 ° C), making it perfect for continual operation above 1600 ° C.
1.2 Thermal and Mechanical Performance
A defining attribute of SiC crucibles is their high thermal conductivity– varying from 80 to 120 W/(m · K)– which promotes uniform warmth distribution and lessens thermal stress and anxiety throughout fast home heating or air conditioning.
This building contrasts greatly with low-conductivity porcelains like alumina (≈ 30 W/(m · K)), which are susceptible to cracking under thermal shock.
SiC likewise shows superb mechanical toughness at elevated temperature levels, maintaining over 80% of its room-temperature flexural stamina (as much as 400 MPa) also at 1400 ° C.
Its low coefficient of thermal growth (~ 4.0 × 10 ⁻⁶/ K) better boosts resistance to thermal shock, an important consider repeated biking between ambient and functional temperature levels.
Additionally, SiC demonstrates exceptional wear and abrasion resistance, ensuring long service life in environments entailing mechanical handling or turbulent melt circulation.
2. Production Approaches and Microstructural Control

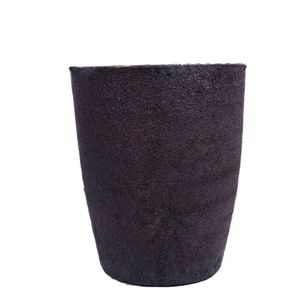

( Silicon Carbide Crucibles)
2.1 Sintering Strategies and Densification Approaches
Business SiC crucibles are mainly made via pressureless sintering, response bonding, or warm pressing, each offering unique advantages in expense, pureness, and performance.
Pressureless sintering entails condensing fine SiC powder with sintering help such as boron and carbon, adhered to by high-temperature treatment (2000– 2200 ° C )in inert ambience to attain near-theoretical thickness.
This method yields high-purity, high-strength crucibles suitable for semiconductor and advanced alloy handling.
Reaction-bonded SiC (RBSC) is created by infiltrating a permeable carbon preform with liquified silicon, which reacts to create β-SiC in situ, leading to a compound of SiC and residual silicon.
While somewhat lower in thermal conductivity due to metal silicon incorporations, RBSC provides outstanding dimensional stability and lower manufacturing price, making it preferred for large industrial use.
Hot-pressed SiC, though a lot more costly, provides the highest density and purity, booked for ultra-demanding applications such as single-crystal development.
2.2 Surface Area High Quality and Geometric Precision
Post-sintering machining, consisting of grinding and splashing, guarantees exact dimensional resistances and smooth inner surface areas that lessen nucleation sites and lower contamination risk.
Surface area roughness is carefully controlled to stop thaw bond and facilitate very easy launch of solidified materials.
Crucible geometry– such as wall density, taper angle, and lower curvature– is maximized to balance thermal mass, architectural strength, and compatibility with furnace burner.
Personalized designs fit specific melt volumes, home heating profiles, and material sensitivity, guaranteeing optimal performance across varied commercial processes.
Advanced quality control, consisting of X-ray diffraction, scanning electron microscopy, and ultrasonic testing, confirms microstructural homogeneity and absence of defects like pores or cracks.
3. Chemical Resistance and Communication with Melts
3.1 Inertness in Aggressive Settings
SiC crucibles show remarkable resistance to chemical assault by molten steels, slags, and non-oxidizing salts, outmatching standard graphite and oxide porcelains.
They are secure touching liquified aluminum, copper, silver, and their alloys, resisting wetting and dissolution as a result of low interfacial power and development of protective surface area oxides.
In silicon and germanium handling for photovoltaics and semiconductors, SiC crucibles avoid metallic contamination that might weaken digital properties.
Nonetheless, under extremely oxidizing conditions or in the visibility of alkaline fluxes, SiC can oxidize to form silica (SiO ₂), which might react additionally to create low-melting-point silicates.
Therefore, SiC is ideal fit for neutral or decreasing environments, where its security is optimized.
3.2 Limitations and Compatibility Considerations
Regardless of its effectiveness, SiC is not universally inert; it reacts with specific molten products, specifically iron-group steels (Fe, Ni, Co) at heats with carburization and dissolution processes.
In liquified steel processing, SiC crucibles weaken rapidly and are consequently avoided.
Similarly, antacids and alkaline planet metals (e.g., Li, Na, Ca) can decrease SiC, releasing carbon and forming silicides, restricting their use in battery material synthesis or reactive metal spreading.
For molten glass and ceramics, SiC is generally compatible yet may present trace silicon into extremely delicate optical or digital glasses.
Comprehending these material-specific interactions is important for choosing the suitable crucible kind and guaranteeing procedure purity and crucible longevity.
4. Industrial Applications and Technical Evolution
4.1 Metallurgy, Semiconductor, and Renewable Resource Sectors
SiC crucibles are important in the production of multicrystalline and monocrystalline silicon ingots for solar batteries, where they endure prolonged direct exposure to thaw silicon at ~ 1420 ° C.
Their thermal security makes sure consistent formation and reduces dislocation thickness, straight affecting photovoltaic or pv effectiveness.
In shops, SiC crucibles are made use of for melting non-ferrous metals such as light weight aluminum and brass, providing longer life span and minimized dross formation compared to clay-graphite alternatives.
They are also used in high-temperature lab for thermogravimetric analysis, differential scanning calorimetry, and synthesis of innovative porcelains and intermetallic substances.
4.2 Future Patterns and Advanced Material Combination
Emerging applications include using SiC crucibles in next-generation nuclear materials screening and molten salt activators, where their resistance to radiation and molten fluorides is being examined.
Coatings such as pyrolytic boron nitride (PBN) or yttria (Y TWO O THREE) are being related to SiC surface areas to better improve chemical inertness and stop silicon diffusion in ultra-high-purity processes.
Additive production of SiC parts making use of binder jetting or stereolithography is under advancement, promising complicated geometries and rapid prototyping for specialized crucible designs.
As need expands for energy-efficient, sturdy, and contamination-free high-temperature handling, silicon carbide crucibles will continue to be a foundation modern technology in innovative materials making.
Finally, silicon carbide crucibles stand for an important allowing component in high-temperature commercial and scientific processes.
Their unmatched combination of thermal security, mechanical strength, and chemical resistance makes them the material of option for applications where efficiency and integrity are vital.
