1. The Scientific research and Structure of Alumina Ceramic Products
1.1 Crystallography and Compositional Variants of Light Weight Aluminum Oxide

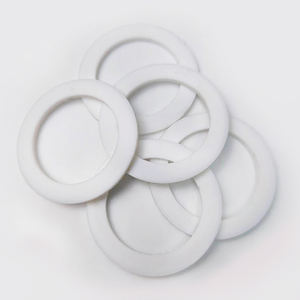

(Alumina Ceramics Rings)
Alumina ceramic rings are produced from light weight aluminum oxide (Al ₂ O THREE), a compound renowned for its exceptional equilibrium of mechanical stamina, thermal security, and electric insulation.
One of the most thermodynamically secure and industrially relevant stage of alumina is the alpha (α) phase, which crystallizes in a hexagonal close-packed (HCP) structure coming from the diamond household.
In this plan, oxygen ions form a dense latticework with light weight aluminum ions inhabiting two-thirds of the octahedral interstitial sites, causing a highly stable and durable atomic structure.
While pure alumina is theoretically 100% Al Two O FIVE, industrial-grade products frequently contain little portions of ingredients such as silica (SiO ₂), magnesia (MgO), or yttria (Y TWO O TWO) to regulate grain growth throughout sintering and boost densification.
Alumina ceramics are identified by purity degrees: 96%, 99%, and 99.8% Al ₂ O five prevail, with greater purity correlating to improved mechanical residential properties, thermal conductivity, and chemical resistance.
The microstructure– specifically grain size, porosity, and phase circulation– plays an essential function in determining the last performance of alumina rings in solution settings.
1.2 Secret Physical and Mechanical Feature
Alumina ceramic rings show a collection of residential or commercial properties that make them crucial sought after commercial setups.
They possess high compressive stamina (up to 3000 MPa), flexural toughness (generally 350– 500 MPa), and excellent firmness (1500– 2000 HV), allowing resistance to put on, abrasion, and contortion under load.
Their reduced coefficient of thermal development (around 7– 8 × 10 ⁻⁶/ K) makes certain dimensional stability throughout broad temperature arrays, lessening thermal stress and anxiety and breaking during thermal biking.
Thermal conductivity ranges from 20 to 30 W/m · K, relying on purity, permitting moderate heat dissipation– adequate for lots of high-temperature applications without the requirement for active cooling.

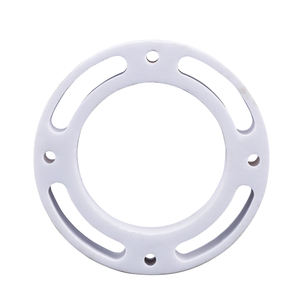

( Alumina Ceramics Ring)
Electrically, alumina is a superior insulator with a volume resistivity surpassing 10 ¹⁴ Ω · centimeters and a dielectric stamina of around 10– 15 kV/mm, making it excellent for high-voltage insulation parts.
Furthermore, alumina demonstrates excellent resistance to chemical assault from acids, antacid, and molten metals, although it is vulnerable to assault by strong alkalis and hydrofluoric acid at elevated temperature levels.
2. Production and Precision Design of Alumina Bands
2.1 Powder Handling and Forming Techniques
The manufacturing of high-performance alumina ceramic rings begins with the option and preparation of high-purity alumina powder.
Powders are typically synthesized through calcination of aluminum hydroxide or through advanced techniques like sol-gel handling to achieve great bit size and slim dimension distribution.
To develop the ring geometry, numerous forming methods are employed, consisting of:
Uniaxial pushing: where powder is compressed in a die under high pressure to develop a “environment-friendly” ring.
Isostatic pushing: applying uniform pressure from all instructions using a fluid tool, leading to greater density and more uniform microstructure, particularly for facility or huge rings.
Extrusion: ideal for lengthy round kinds that are later on cut into rings, commonly made use of for lower-precision applications.
Injection molding: utilized for detailed geometries and tight tolerances, where alumina powder is blended with a polymer binder and infused right into a mold and mildew.
Each method affects the last density, grain positioning, and defect distribution, demanding mindful process choice based on application demands.
2.2 Sintering and Microstructural Advancement
After forming, the green rings undergo high-temperature sintering, commonly in between 1500 ° C and 1700 ° C in air or regulated environments.
Throughout sintering, diffusion devices drive bit coalescence, pore elimination, and grain development, resulting in a completely thick ceramic body.
The price of home heating, holding time, and cooling down profile are specifically managed to stop breaking, warping, or overstated grain development.
Additives such as MgO are usually presented to prevent grain border flexibility, causing a fine-grained microstructure that improves mechanical stamina and integrity.
Post-sintering, alumina rings might go through grinding and splashing to attain tight dimensional tolerances ( ± 0.01 mm) and ultra-smooth surface area coatings (Ra < 0.1 µm), essential for securing, birthing, and electrical insulation applications.
3. Functional Performance and Industrial Applications
3.1 Mechanical and Tribological Applications
Alumina ceramic rings are extensively used in mechanical systems as a result of their wear resistance and dimensional security.
Secret applications include:
Sealing rings in pumps and valves, where they withstand disintegration from abrasive slurries and corrosive liquids in chemical handling and oil & gas markets.
Birthing elements in high-speed or destructive atmospheres where metal bearings would certainly deteriorate or call for constant lubrication.
Overview rings and bushings in automation devices, using low rubbing and lengthy life span without the demand for oiling.
Wear rings in compressors and generators, lessening clearance in between rotating and fixed components under high-pressure conditions.
Their ability to maintain efficiency in completely dry or chemically hostile atmospheres makes them above numerous metal and polymer choices.
3.2 Thermal and Electrical Insulation Functions
In high-temperature and high-voltage systems, alumina rings work as crucial protecting elements.
They are employed as:
Insulators in burner and furnace elements, where they sustain resisting wires while standing up to temperature levels over 1400 ° C.
Feedthrough insulators in vacuum cleaner and plasma systems, stopping electric arcing while keeping hermetic seals.
Spacers and support rings in power electronics and switchgear, separating conductive components in transformers, circuit breakers, and busbar systems.
Dielectric rings in RF and microwave devices, where their low dielectric loss and high failure strength ensure signal integrity.
The combination of high dielectric stamina and thermal security permits alumina rings to function reliably in atmospheres where natural insulators would weaken.
4. Material Advancements and Future Expectation
4.1 Compound and Doped Alumina Systems
To even more improve performance, scientists and suppliers are developing innovative alumina-based compounds.
Instances include:
Alumina-zirconia (Al Two O FOUR-ZrO ₂) compounds, which exhibit boosted crack durability through change toughening mechanisms.
Alumina-silicon carbide (Al two O FIVE-SiC) nanocomposites, where nano-sized SiC particles boost firmness, thermal shock resistance, and creep resistance.
Rare-earth-doped alumina, which can change grain boundary chemistry to enhance high-temperature strength and oxidation resistance.
These hybrid products expand the operational envelope of alumina rings right into more extreme problems, such as high-stress vibrant loading or quick thermal biking.
4.2 Emerging Trends and Technological Integration
The future of alumina ceramic rings depends on clever assimilation and precision production.
Fads include:
Additive manufacturing (3D printing) of alumina elements, allowing intricate internal geometries and customized ring layouts previously unattainable via typical techniques.
Practical grading, where composition or microstructure varies across the ring to enhance performance in different areas (e.g., wear-resistant outer layer with thermally conductive core).
In-situ tracking by means of ingrained sensors in ceramic rings for anticipating upkeep in commercial equipment.
Enhanced usage in renewable energy systems, such as high-temperature gas cells and focused solar power plants, where material integrity under thermal and chemical anxiety is critical.
As markets require higher effectiveness, longer life-spans, and lowered maintenance, alumina ceramic rings will certainly remain to play a critical duty in allowing next-generation engineering remedies.
