1. The Nanoscale Architecture and Product Science of Aerogels
1.1 Genesis and Fundamental Framework of Aerogel Products

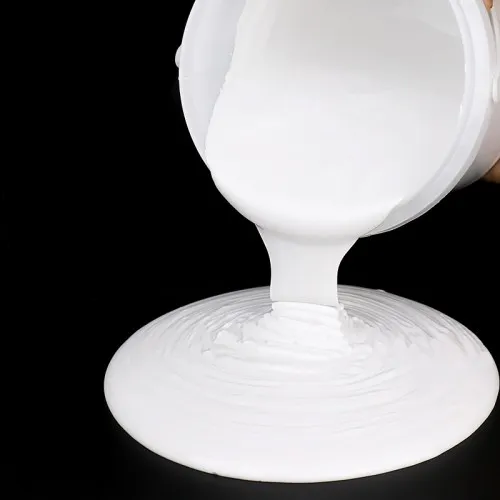

(Aerogel Insulation Coatings)
Aerogel insulation finishings stand for a transformative advancement in thermal monitoring innovation, rooted in the unique nanostructure of aerogels– ultra-lightweight, porous materials originated from gels in which the liquid component is changed with gas without falling down the strong network.
First developed in the 1930s by Samuel Kistler, aerogels continued to be greatly laboratory inquisitiveness for decades because of delicacy and high production prices.
Nonetheless, recent developments in sol-gel chemistry and drying out methods have allowed the integration of aerogel particles into adaptable, sprayable, and brushable coating solutions, opening their potential for extensive industrial application.
The core of aerogel’s phenomenal protecting capacity depends on its nanoscale permeable structure: generally composed of silica (SiO TWO), the product exhibits porosity exceeding 90%, with pore sizes mostly in the 2– 50 nm array– well listed below the mean complimentary course of air molecules (~ 70 nm at ambient problems).
This nanoconfinement significantly minimizes gaseous thermal conduction, as air particles can not effectively transfer kinetic energy via crashes within such constrained spaces.
Concurrently, the strong silica network is crafted to be highly tortuous and discontinuous, minimizing conductive warm transfer through the solid phase.
The outcome is a product with among the lowest thermal conductivities of any strong understood– usually between 0.012 and 0.018 W/m · K at space temperature– going beyond conventional insulation products like mineral wool, polyurethane foam, or broadened polystyrene.
1.2 Development from Monolithic Aerogels to Composite Coatings
Early aerogels were produced as brittle, monolithic blocks, limiting their use to niche aerospace and clinical applications.
The change towards composite aerogel insulation finishes has been driven by the need for flexible, conformal, and scalable thermal barriers that can be related to intricate geometries such as pipelines, shutoffs, and uneven tools surfaces.
Modern aerogel finishings include carefully grated aerogel granules (typically 1– 10 µm in diameter) spread within polymeric binders such as acrylics, silicones, or epoxies.

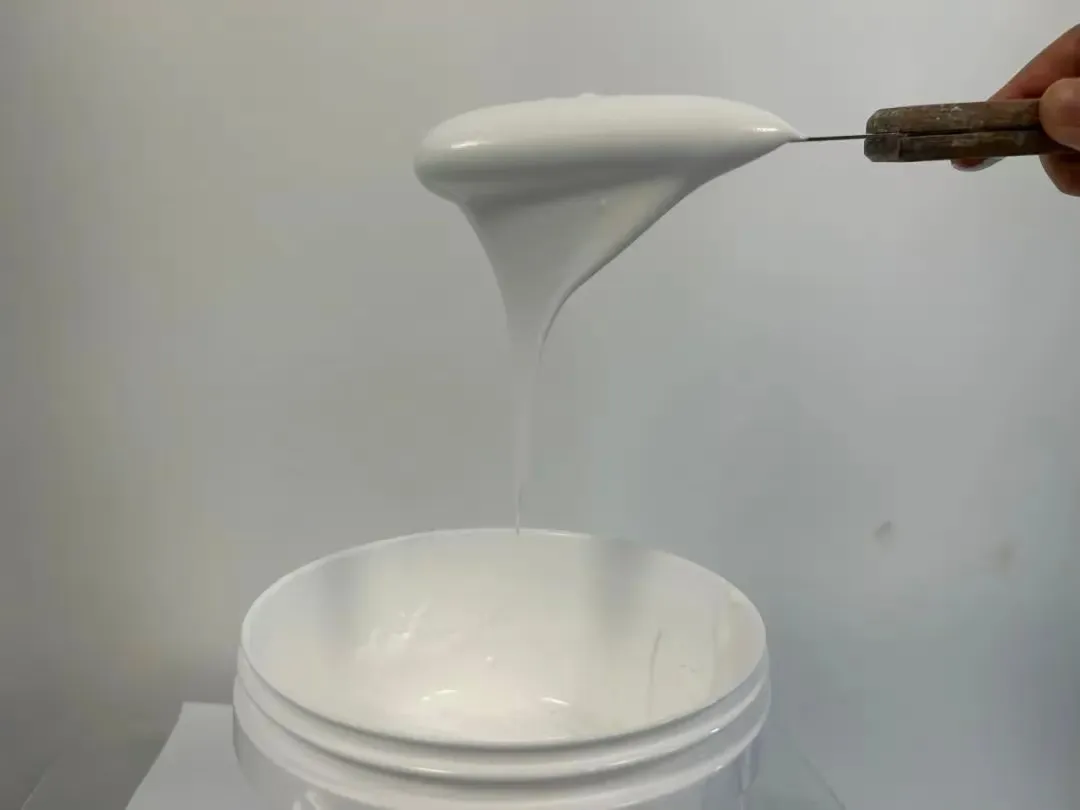

( Aerogel Insulation Coatings)
These hybrid formulations preserve a lot of the innate thermal efficiency of pure aerogels while acquiring mechanical robustness, bond, and weather condition resistance.
The binder phase, while somewhat raising thermal conductivity, provides crucial cohesion and makes it possible for application by means of typical industrial approaches consisting of splashing, rolling, or dipping.
Crucially, the volume fraction of aerogel particles is enhanced to balance insulation efficiency with film honesty– normally varying from 40% to 70% by quantity in high-performance formulas.
This composite strategy maintains the Knudsen impact (the reductions of gas-phase transmission in nanopores) while permitting tunable residential properties such as flexibility, water repellency, and fire resistance.
2. Thermal Performance and Multimodal Heat Transfer Suppression
2.1 Mechanisms of Thermal Insulation at the Nanoscale
Aerogel insulation coatings attain their premium efficiency by at the same time reducing all 3 settings of warm transfer: transmission, convection, and radiation.
Conductive warm transfer is reduced through the mix of low solid-phase connectivity and the nanoporous framework that hinders gas molecule motion.
Because the aerogel network consists of extremely slim, interconnected silica strands (often simply a few nanometers in size), the pathway for phonon transportation (heat-carrying latticework vibrations) is very restricted.
This architectural style effectively decouples surrounding regions of the layer, minimizing thermal connecting.
Convective warmth transfer is naturally absent within the nanopores because of the lack of ability of air to form convection currents in such restricted rooms.
Even at macroscopic ranges, appropriately applied aerogel coatings eliminate air gaps and convective loopholes that plague conventional insulation systems, specifically in vertical or overhead setups.
Radiative warm transfer, which ends up being significant at elevated temperature levels (> 100 ° C), is reduced with the unification of infrared opacifiers such as carbon black, titanium dioxide, or ceramic pigments.
These ingredients raise the finishing’s opacity to infrared radiation, scattering and taking in thermal photons prior to they can go across the covering density.
The harmony of these devices results in a material that offers equivalent insulation efficiency at a fraction of the density of standard products– commonly achieving R-values (thermal resistance) several times greater each density.
2.2 Efficiency Across Temperature and Environmental Conditions
One of one of the most compelling benefits of aerogel insulation finishings is their consistent performance throughout a wide temperature level range, commonly varying from cryogenic temperatures (-200 ° C) to over 600 ° C, depending upon the binder system utilized.
At low temperatures, such as in LNG pipelines or refrigeration systems, aerogel coatings protect against condensation and minimize heat access extra efficiently than foam-based choices.
At heats, specifically in industrial process equipment, exhaust systems, or power generation facilities, they shield underlying substrates from thermal deterioration while lessening power loss.
Unlike organic foams that might disintegrate or char, silica-based aerogel finishes stay dimensionally stable and non-combustible, adding to passive fire defense methods.
Additionally, their low tide absorption and hydrophobic surface area therapies (often accomplished using silane functionalization) stop efficiency degradation in damp or wet atmospheres– a typical failing setting for coarse insulation.
3. Solution Techniques and Functional Assimilation in Coatings
3.1 Binder Selection and Mechanical Residential Property Engineering
The option of binder in aerogel insulation coatings is vital to stabilizing thermal performance with resilience and application flexibility.
Silicone-based binders offer exceptional high-temperature security and UV resistance, making them appropriate for exterior and commercial applications.
Polymer binders give excellent adhesion to steels and concrete, in addition to simplicity of application and reduced VOC discharges, ideal for developing envelopes and cooling and heating systems.
Epoxy-modified formulations improve chemical resistance and mechanical stamina, beneficial in aquatic or destructive atmospheres.
Formulators likewise include rheology modifiers, dispersants, and cross-linking agents to ensure consistent fragment distribution, prevent clearing up, and boost movie formation.
Adaptability is very carefully tuned to stay clear of cracking during thermal cycling or substratum deformation, specifically on dynamic structures like growth joints or shaking equipment.
3.2 Multifunctional Enhancements and Smart Covering Potential
Past thermal insulation, contemporary aerogel finishes are being engineered with additional capabilities.
Some solutions consist of corrosion-inhibiting pigments or self-healing representatives that expand the lifespan of metal substratums.
Others integrate phase-change products (PCMs) within the matrix to offer thermal energy storage space, smoothing temperature changes in buildings or digital enclosures.
Arising research study discovers the combination of conductive nanomaterials (e.g., carbon nanotubes) to make it possible for in-situ monitoring of coating integrity or temperature distribution– leading the way for “wise” thermal administration systems.
These multifunctional capabilities setting aerogel coverings not merely as easy insulators yet as active parts in intelligent facilities and energy-efficient systems.
4. Industrial and Commercial Applications Driving Market Adoption
4.1 Power Effectiveness in Structure and Industrial Sectors
Aerogel insulation coatings are significantly released in industrial structures, refineries, and nuclear power plant to reduce power usage and carbon exhausts.
Applied to vapor lines, boilers, and warmth exchangers, they substantially reduced warm loss, enhancing system effectiveness and reducing gas need.
In retrofit scenarios, their slim account allows insulation to be included without significant architectural alterations, maintaining room and decreasing downtime.
In domestic and business building, aerogel-enhanced paints and plasters are used on wall surfaces, roofing systems, and home windows to boost thermal comfort and decrease HVAC loads.
4.2 Specific Niche and High-Performance Applications
The aerospace, vehicle, and electronics industries take advantage of aerogel layers for weight-sensitive and space-constrained thermal administration.
In electric automobiles, they shield battery packs from thermal runaway and exterior warmth sources.
In electronic devices, ultra-thin aerogel layers insulate high-power parts and protect against hotspots.
Their use in cryogenic storage space, room environments, and deep-sea devices underscores their integrity in severe atmospheres.
As manufacturing ranges and prices decrease, aerogel insulation layers are poised to end up being a cornerstone of next-generation lasting and resilient facilities.
