1. Product Principles and Microstructural Attributes of Alumina Ceramics
1.1 Structure, Pureness Grades, and Crystallographic Quality

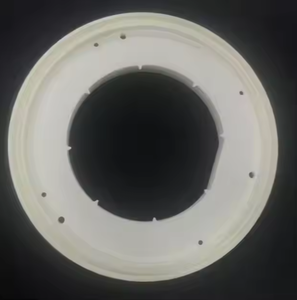

(Alumina Ceramic Wear Liners)
Alumina (Al ₂ O TWO), or light weight aluminum oxide, is one of one of the most widely used technological porcelains in industrial design due to its exceptional balance of mechanical stamina, chemical security, and cost-effectiveness.
When crafted into wear linings, alumina ceramics are typically made with pureness degrees varying from 85% to 99.9%, with higher purity corresponding to enhanced firmness, use resistance, and thermal performance.
The dominant crystalline phase is alpha-alumina, which embraces a hexagonal close-packed (HCP) framework identified by strong ionic and covalent bonding, adding to its high melting point (~ 2072 ° C )and low thermal conductivity.
Microstructurally, alumina ceramics consist of penalty, equiaxed grains whose dimension and distribution are managed during sintering to maximize mechanical residential or commercial properties.
Grain sizes generally vary from submicron to a number of micrometers, with better grains typically enhancing crack toughness and resistance to crack breeding under rough packing.
Minor ingredients such as magnesium oxide (MgO) are commonly introduced in trace amounts to prevent abnormal grain growth during high-temperature sintering, making certain uniform microstructure and dimensional security.
The resulting product shows a Vickers firmness of 1500– 2000 HV, substantially exceeding that of solidified steel (typically 600– 800 HV), making it exceptionally resistant to surface area degradation in high-wear settings.
1.2 Mechanical and Thermal Performance in Industrial Issues
Alumina ceramic wear liners are picked largely for their superior resistance to rough, abrasive, and gliding wear systems widespread in bulk product handling systems.
They have high compressive toughness (up to 3000 MPa), good flexural toughness (300– 500 MPa), and outstanding tightness (Young’s modulus of ~ 380 Grade point average), enabling them to stand up to extreme mechanical loading without plastic contortion.
Although inherently breakable contrasted to metals, their low coefficient of rubbing and high surface hardness reduce fragment adhesion and minimize wear rates by orders of magnitude relative to steel or polymer-based options.
Thermally, alumina keeps structural honesty as much as 1600 ° C in oxidizing ambiences, permitting usage in high-temperature processing environments such as kiln feed systems, central heating boiler ducting, and pyroprocessing equipment.

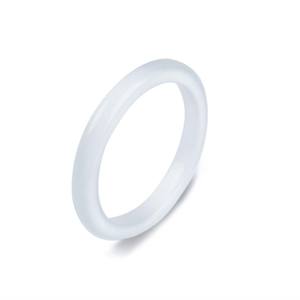

( Alumina Ceramic Wear Liners)
Its low thermal growth coefficient (~ 8 × 10 ⁻⁶/ K) adds to dimensional security throughout thermal biking, decreasing the threat of splitting due to thermal shock when correctly set up.
Furthermore, alumina is electrically protecting and chemically inert to many acids, alkalis, and solvents, making it appropriate for destructive atmospheres where metal liners would break down swiftly.
These combined buildings make alumina porcelains perfect for safeguarding important framework in mining, power generation, concrete production, and chemical processing industries.
2. Production Processes and Layout Combination Strategies
2.1 Forming, Sintering, and Quality Control Protocols
The manufacturing of alumina ceramic wear linings includes a sequence of accuracy production steps made to accomplish high thickness, minimal porosity, and constant mechanical performance.
Raw alumina powders are refined with milling, granulation, and forming strategies such as completely dry pushing, isostatic pushing, or extrusion, relying on the preferred geometry– floor tiles, plates, pipes, or custom-shaped segments.
Green bodies are then sintered at temperatures between 1500 ° C and 1700 ° C in air, advertising densification via solid-state diffusion and accomplishing loved one densities going beyond 95%, commonly coming close to 99% of theoretical thickness.
Complete densification is important, as recurring porosity works as anxiety concentrators and speeds up wear and fracture under solution conditions.
Post-sintering procedures may consist of ruby grinding or lapping to attain tight dimensional resistances and smooth surface area coatings that reduce rubbing and particle capturing.
Each batch undergoes strenuous quality assurance, including X-ray diffraction (XRD) for stage evaluation, scanning electron microscopy (SEM) for microstructural analysis, and solidity and bend testing to verify compliance with global requirements such as ISO 6474 or ASTM B407.
2.2 Mounting Techniques and System Compatibility Considerations
Efficient combination of alumina wear liners into industrial tools needs cautious interest to mechanical add-on and thermal growth compatibility.
Common installment approaches consist of sticky bonding using high-strength ceramic epoxies, mechanical fastening with studs or anchors, and embedding within castable refractory matrices.
Sticky bonding is extensively made use of for level or carefully rounded surface areas, giving consistent stress circulation and resonance damping, while stud-mounted systems enable very easy replacement and are favored in high-impact zones.
To suit differential thermal development between alumina and metallic substrates (e.g., carbon steel), engineered voids, adaptable adhesives, or compliant underlayers are integrated to avoid delamination or breaking throughout thermal transients.
Developers have to also take into consideration edge protection, as ceramic tiles are prone to cracking at revealed corners; remedies include beveled edges, metal shadows, or overlapping ceramic tile configurations.
Proper installment ensures long life span and makes the most of the safety function of the lining system.
3. Use Devices and Performance Evaluation in Solution Environments
3.1 Resistance to Abrasive, Erosive, and Influence Loading
Alumina ceramic wear linings excel in settings dominated by three main wear mechanisms: two-body abrasion, three-body abrasion, and particle erosion.
In two-body abrasion, hard particles or surfaces directly gouge the liner surface, a typical incident in chutes, receptacles, and conveyor changes.
Three-body abrasion entails loose fragments trapped between the lining and moving material, bring about rolling and damaging activity that progressively removes product.
Erosive wear happens when high-velocity particles impinge on the surface area, specifically in pneumatically-driven conveying lines and cyclone separators.
Because of its high solidity and low fracture toughness, alumina is most reliable in low-impact, high-abrasion circumstances.
It does extremely well versus siliceous ores, coal, fly ash, and cement clinker, where wear rates can be reduced by 10– 50 times contrasted to light steel liners.
Nevertheless, in applications involving duplicated high-energy impact, such as key crusher chambers, hybrid systems combining alumina tiles with elastomeric supports or metal guards are usually used to soak up shock and protect against fracture.
3.2 Area Screening, Life Cycle Analysis, and Failing Setting Analysis
Performance analysis of alumina wear linings includes both laboratory testing and area surveillance.
Standard tests such as the ASTM G65 completely dry sand rubber wheel abrasion examination provide comparative wear indices, while customized slurry disintegration gears mimic site-specific problems.
In industrial setups, use price is commonly gauged in mm/year or g/kWh, with service life estimates based on initial density and observed destruction.
Failure settings include surface polishing, micro-cracking, spalling at sides, and total tile dislodgement because of sticky degradation or mechanical overload.
Root cause analysis frequently reveals setup mistakes, incorrect quality choice, or unforeseen effect loads as main contributors to premature failure.
Life cycle expense evaluation consistently shows that regardless of higher preliminary expenses, alumina liners provide exceptional total cost of ownership as a result of extended replacement intervals, minimized downtime, and reduced maintenance labor.
4. Industrial Applications and Future Technological Advancements
4.1 Sector-Specific Implementations Across Heavy Industries
Alumina ceramic wear liners are released throughout a broad spectrum of industrial sectors where product degradation postures operational and financial obstacles.
In mining and mineral handling, they protect transfer chutes, mill linings, hydrocyclones, and slurry pumps from abrasive slurries consisting of quartz, hematite, and other difficult minerals.
In power plants, alumina floor tiles line coal pulverizer air ducts, central heating boiler ash hoppers, and electrostatic precipitator elements subjected to fly ash erosion.
Cement manufacturers utilize alumina liners in raw mills, kiln inlet areas, and clinker conveyors to combat the very abrasive nature of cementitious products.
The steel industry utilizes them in blast heating system feed systems and ladle shadows, where resistance to both abrasion and modest thermal tons is crucial.
Also in much less traditional applications such as waste-to-energy plants and biomass handling systems, alumina porcelains provide durable protection against chemically aggressive and coarse materials.
4.2 Arising Patterns: Compound Solutions, Smart Liners, and Sustainability
Present research focuses on enhancing the toughness and performance of alumina wear systems via composite layout.
Alumina-zirconia (Al ₂ O ₃-ZrO TWO) composites leverage makeover toughening from zirconia to improve fracture resistance, while alumina-titanium carbide (Al ₂ O TWO-TiC) grades supply improved efficiency in high-temperature moving wear.
An additional innovation entails installing sensing units within or underneath ceramic linings to check wear development, temperature, and effect regularity– enabling anticipating maintenance and electronic double integration.
From a sustainability point of view, the extended service life of alumina linings decreases material usage and waste generation, straightening with round economy principles in industrial operations.
Recycling of spent ceramic liners into refractory accumulations or construction materials is also being explored to reduce environmental impact.
Finally, alumina ceramic wear linings stand for a cornerstone of contemporary commercial wear defense technology.
Their phenomenal solidity, thermal stability, and chemical inertness, integrated with fully grown manufacturing and setup methods, make them vital in combating product deterioration throughout hefty industries.
As material scientific research advancements and electronic monitoring comes to be a lot more incorporated, the future generation of smart, resistant alumina-based systems will additionally boost operational efficiency and sustainability in unpleasant atmospheres.
