1. Product Basics and Morphological Advantages
1.1 Crystal Structure and Chemical Make-up

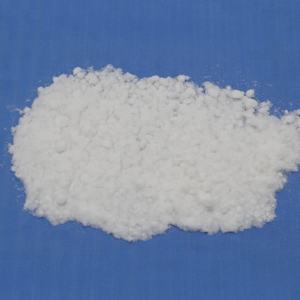

(Spherical alumina)
Round alumina, or round light weight aluminum oxide (Al two O SIX), is a synthetically generated ceramic material characterized by a well-defined globular morphology and a crystalline framework primarily in the alpha (α) phase.
Alpha-alumina, the most thermodynamically secure polymorph, includes a hexagonal close-packed arrangement of oxygen ions with aluminum ions inhabiting two-thirds of the octahedral interstices, causing high lattice energy and exceptional chemical inertness.
This phase displays impressive thermal stability, preserving stability approximately 1800 ° C, and stands up to reaction with acids, antacid, and molten metals under the majority of commercial problems.
Unlike uneven or angular alumina powders stemmed from bauxite calcination, round alumina is engineered via high-temperature procedures such as plasma spheroidization or fire synthesis to achieve consistent satiation and smooth surface texture.
The transformation from angular forerunner bits– usually calcined bauxite or gibbsite– to thick, isotropic balls eliminates sharp edges and interior porosity, enhancing packaging performance and mechanical toughness.
High-purity grades (≥ 99.5% Al Two O FOUR) are essential for electronic and semiconductor applications where ionic contamination must be minimized.
1.2 Particle Geometry and Packing Actions
The defining function of spherical alumina is its near-perfect sphericity, usually quantified by a sphericity index > 0.9, which substantially influences its flowability and packing density in composite systems.
In comparison to angular particles that interlock and produce voids, spherical fragments roll past one another with very little rubbing, making it possible for high solids loading throughout formula of thermal user interface materials (TIMs), encapsulants, and potting substances.
This geometric uniformity permits maximum academic packaging thickness going beyond 70 vol%, far going beyond the 50– 60 vol% normal of irregular fillers.
Higher filler filling directly converts to boosted thermal conductivity in polymer matrices, as the continual ceramic network supplies reliable phonon transport pathways.
In addition, the smooth surface lowers endure processing devices and minimizes viscosity surge during blending, improving processability and diffusion security.
The isotropic nature of spheres likewise prevents orientation-dependent anisotropy in thermal and mechanical residential properties, ensuring consistent performance in all directions.
2. Synthesis Approaches and Quality Assurance
2.1 High-Temperature Spheroidization Methods
The production of spherical alumina primarily relies on thermal approaches that thaw angular alumina particles and enable surface tension to improve them right into balls.

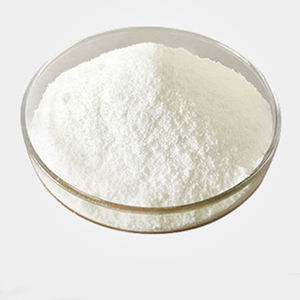

( Spherical alumina)
Plasma spheroidization is the most widely utilized commercial method, where alumina powder is infused right into a high-temperature plasma flame (as much as 10,000 K), creating instantaneous melting and surface area tension-driven densification right into ideal balls.
The molten droplets strengthen swiftly during flight, creating thick, non-porous particles with consistent dimension circulation when paired with precise classification.
Different methods include fire spheroidization making use of oxy-fuel lanterns and microwave-assisted heating, though these generally use lower throughput or much less control over particle dimension.
The beginning product’s purity and fragment size distribution are essential; submicron or micron-scale precursors generate alike sized rounds after handling.
Post-synthesis, the item undergoes strenuous sieving, electrostatic splitting up, and laser diffraction analysis to make certain tight bit dimension circulation (PSD), normally ranging from 1 to 50 µm depending on application.
2.2 Surface Area Alteration and Functional Customizing
To boost compatibility with natural matrices such as silicones, epoxies, and polyurethanes, spherical alumina is often surface-treated with coupling agents.
Silane combining agents– such as amino, epoxy, or vinyl practical silanes– kind covalent bonds with hydroxyl groups on the alumina surface area while offering natural capability that communicates with the polymer matrix.
This therapy improves interfacial attachment, reduces filler-matrix thermal resistance, and prevents load, resulting in even more uniform composites with premium mechanical and thermal efficiency.
Surface layers can also be crafted to impart hydrophobicity, improve diffusion in nonpolar resins, or allow stimuli-responsive actions in smart thermal products.
Quality assurance includes measurements of BET surface area, tap thickness, thermal conductivity (usually 25– 35 W/(m · K )for dense α-alumina), and impurity profiling via ICP-MS to exclude Fe, Na, and K at ppm levels.
Batch-to-batch consistency is essential for high-reliability applications in electronics and aerospace.
3. Thermal and Mechanical Efficiency in Composites
3.1 Thermal Conductivity and Interface Engineering
Round alumina is primarily utilized as a high-performance filler to boost the thermal conductivity of polymer-based materials used in electronic packaging, LED illumination, and power components.
While pure epoxy or silicone has a thermal conductivity of ~ 0.2 W/(m · K), loading with 60– 70 vol% spherical alumina can raise this to 2– 5 W/(m · K), sufficient for reliable warmth dissipation in small tools.
The high innate thermal conductivity of α-alumina, integrated with marginal phonon scattering at smooth particle-particle and particle-matrix interfaces, makes it possible for reliable heat transfer with percolation networks.
Interfacial thermal resistance (Kapitza resistance) stays a limiting element, but surface area functionalization and optimized diffusion strategies help reduce this obstacle.
In thermal user interface materials (TIMs), spherical alumina reduces contact resistance between heat-generating components (e.g., CPUs, IGBTs) and heat sinks, avoiding overheating and extending gadget life-span.
Its electrical insulation (resistivity > 10 ¹² Ω · cm) ensures safety in high-voltage applications, identifying it from conductive fillers like steel or graphite.
3.2 Mechanical Stability and Reliability
Beyond thermal efficiency, spherical alumina enhances the mechanical robustness of composites by increasing solidity, modulus, and dimensional security.
The round form distributes stress evenly, decreasing split initiation and propagation under thermal biking or mechanical lots.
This is specifically critical in underfill products and encapsulants for flip-chip and 3D-packaged tools, where coefficient of thermal development (CTE) mismatch can induce delamination.
By adjusting filler loading and fragment size circulation (e.g., bimodal blends), the CTE of the composite can be tuned to match that of silicon or published motherboard, reducing thermo-mechanical tension.
Additionally, the chemical inertness of alumina prevents deterioration in damp or corrosive settings, guaranteeing long-term dependability in auto, industrial, and exterior electronic devices.
4. Applications and Technological Evolution
4.1 Electronics and Electric Lorry Systems
Spherical alumina is a key enabler in the thermal monitoring of high-power electronics, including protected entrance bipolar transistors (IGBTs), power materials, and battery management systems in electrical cars (EVs).
In EV battery loads, it is incorporated right into potting compounds and phase adjustment materials to stop thermal runaway by evenly distributing warmth throughout cells.
LED makers utilize it in encapsulants and second optics to maintain lumen output and color uniformity by lowering joint temperature.
In 5G framework and information facilities, where heat change thickness are rising, round alumina-filled TIMs guarantee steady operation of high-frequency chips and laser diodes.
Its duty is broadening into innovative packaging technologies such as fan-out wafer-level packaging (FOWLP) and embedded die systems.
4.2 Arising Frontiers and Sustainable Technology
Future advancements concentrate on hybrid filler systems integrating round alumina with boron nitride, aluminum nitride, or graphene to achieve collaborating thermal efficiency while preserving electrical insulation.
Nano-spherical alumina (sub-100 nm) is being explored for transparent ceramics, UV finishes, and biomedical applications, though challenges in dispersion and expense stay.
Additive manufacturing of thermally conductive polymer composites making use of round alumina makes it possible for complicated, topology-optimized warm dissipation frameworks.
Sustainability efforts consist of energy-efficient spheroidization procedures, recycling of off-spec material, and life-cycle analysis to lower the carbon footprint of high-performance thermal products.
In recap, round alumina stands for an essential engineered material at the intersection of ceramics, composites, and thermal scientific research.
Its distinct combination of morphology, purity, and performance makes it indispensable in the continuous miniaturization and power rise of modern electronic and energy systems.
