Bearings are frequently called the “joints of industry.” Getting the choice right directly affects your tools’s dependability, life span, and upkeep expenses. Lots of bearing failures don’t originate from poor quality– they originate from wrong options. Points like load estimation mistakes, overlooking rate limits, or picking the incorrect lubrication method. These little blunders can trigger equipment to damage down early in its service life. This overview strolls you through the whole selection procedure, offering engineers and procurement experts a clear course from assessing working conditions to verifying the right bearing version.
Component One: What You Required to Know Prior To Starting
Before you open up any bearing directory, ask yourself one question: Exactly what does this maker require the bearing to do? The answer depends on 5 essential areas:
1. Lots Features
Tons is the top factor in birthing selection. You require to determine 3 points:
Instructions: Is it radial tons (perpendicular to the shaft), axial lots (parallel to the shaft), or a mix of both?
Dimension: Is it light, modest, or heavy? Any kind of effect tons?
Nature: Is the lots steady or transforming? Exactly how commonly do effect lots take place and just how solid are they?
Take a belt conveyor for example. The bearings at the drive end tackle radial tons from belt tension, the weight of the belt and rollers, plus the shaft setting up. When computing, you need to think about different operating conditions– start-up, normal operating, braking– and make use of the worst-case scenario for your layout.
2. Speed Problems
(bearings for steel mill)
Rate is an additional crucial factor influencing birthing life. According to tiredness life theory, birthing life has an inverted connection with rate. For variable rate conditions, you require to determine the comparable rate. Take a rotary kiln assistance roller– its rate may range from 0.5 to 2.5 r/min. You ‘d require to weight the running time at each rate to get an equal value.
One thing to keep an eye out for: knowing just the maximum speed can screw up your lubrication strategy. The lubricating substance you pick based on full throttle might not create a correct oil movie at lower speeds. Likewise, if your machine has long still periods, you need to discuss that– otherwise neighboring equipment resonances could create false brinelling damages.
3. Required Service Life
Bearing service life is generally revealed as L10h (the variety of hours that 90% of a bearing group will get to before fatigue spalling shows up). A typical error is going with an excessively long life– when L10h goes beyond 100,000 hours, the bearing dimension gets as well big. It becomes more difficult to oil, torque boosts, and it ends up being more conscious minimal lots. In the long run, it may stop working for factors besides fatigue.
4. Space Constraints
You ought to know your available area limitations from the start– shaft diameter array, housing bore size, axial length restrictions. When you understand the matching shaft size and readily available room, you can rapidly limit your alternatives.
5. Running Accuracy Requirements
A lot of applications do just great with typical precision bearings. However, for high-speed or high-precision equipment like equipment tool spindles, you’ll require P5, P4, and even higher grades. Simply bear in mind that opting for greater precision without an actual need will drive up prices substantially. Suit the grade to your actual requirements.
Part Two: Matching Bearing Kinds to Working Conditions
As soon as you have those specifications clear, the following action is to match the right bearing type based on lots direction, dimension, speed, and imbalance resistance.
1. Tons Instructions: Radial, Axial, or Incorporated?
This is one of the most standard filter. It can aim you to a couple of prospects immediately:

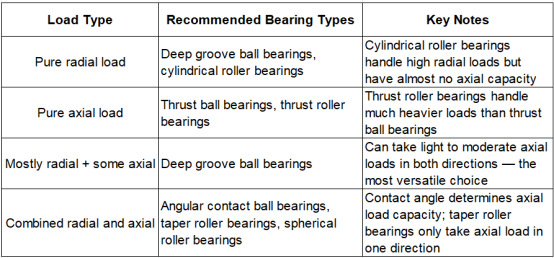

When the axial-to-radial lots proportion (Fa/Fr) adjustments, your selection reasoning modifications as well. At low proportions, choose deep groove ball bearings. At modest ratios, make use of small-contact-angle angular call bearings or taper roller bearings. At high ratios, you’ll need large-contact-angle bearings, or take into consideration combining a drive bearing with a radial bearing.
( Radial)
2. Lots Size: Ball Bearings or Roller Bearings?
This is a timeless choice:
Light or modest loads: Choose sphere bearings (deep groove or angular call). The factor call in between balls and raceways gives lower rubbing, making them appropriate for medium to broadband.
Hefty or influence loads: You have to make use of roller bearings (cylindrical, round, or taper). Line get in touch with in between rollers and raceways offers a lot higher tons ability and far better effect resistance.
3. Speed: Ball Bearings for Broadband, Roller Bearings for Low
Typically talking, ball bearings have greater speed restrictions than roller bearings. For high-speed applications (over 1000 r/min), put sphere bearings on top of your list. When you need the highest possible speed with pure radial tons, open deep groove ball bearings are your best option. For incorporated loads at broadband, angular call round bearings are the means to go.
Round roller bearings, taper roller bearings, and needle bearings have reasonably lower rate limits. They’re generally suited for low-to-medium speed, heavy-load problems.
4. Imbalance Resistance: Do You Need Self-Aligning?
This set typically obtains forgotten however it’s exceptionally essential. You ought to consider self-aligning bearings when:
Bearing real estate bores do not align well
The shaft isn’t stiff enough and bends throughout procedure
The bearing period is lengthy and thermal growth creates angular imbalance
You’re making use of different split housings (like cushion block bearings)
Round roller bearings and spherical round bearings have concave external ring raceways. This enables a specific quantity of angular misalignment in between the inner and external rings without damaging side tension. They can make up for both vibrant deflection and static installation mistakes.
On the various other hand, round roller bearings, taper roller bearings, and needle bearings have very minimal self-aligning ability. Even a little angular misalignment can trigger tension concentration at the roller ends, resulting in high edge stress that substantially reduce birthing life. Deep groove round bearings do have some self-aligning capability, however the permitted angle is tiny– going beyond it will certainly lower life too.
5. Axial Growth Payment: Fixed End or Drifting End?
Long shafts increase and contract with temperature changes throughout operation. That means you need to set up your bearing plan with one fixed end and one floating end.
NU and N collection cylindrical roller bearings have no flanges on the internal ring (or on one side). This allows the shaft action freely in the axial instructions relative to the housing– making them suitable as floating-end bearings. NJ and NUP series can supply axial positioning in one or both instructions, so they function well as fixed-end bearings. This arrangement is very usual in transmissions and electric motors.

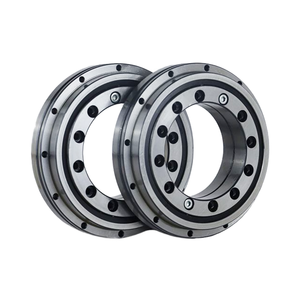

Part Three: BMB Product Line at a Look

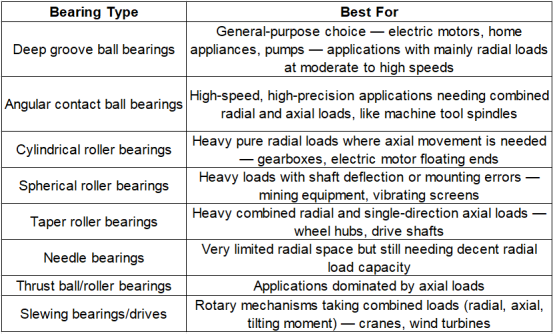

BMB uses a complete variety of commercial bearings, covering all the major kinds we have actually discussed. This quick reference table connects the choice concepts above directly to particular product classifications:
Part 4: Diving Deeper– Accuracy, Clearance, Lubrication, and Seals
( Axial)
1. Accuracy Grades
Standard precision (P0) benefits the vast bulk of general equipment. For precision equipment like equipment tool pins or aerospace components, you’ll need P5 or greater. Tighter precision means tighter dimensional tolerances and far better running accuracy– yet also greater expenses.
2. Inner Clearance and Preload
Bearings need to keep correct internal clearance after setup. Way too much clearance brings about resonance and sound. Inadequate, and thermal development can create the bearing to seize. In diplomatic immunities like maker device spindles, preload (applying negative clearance) is utilized to improve system rigidness and rotational accuracy.
3. Lube Selection
Lubrication is a make-or-break variable for bearing life. Grease benefits many moderate-speed and temperature level applications– it’s simple to seal and can run maintenance-free for extended periods. Oil (oil bath, oil mist, jet lubrication) is much better for high-speed or high-temperature conditions, as it dissipates warmth more effectively. When choosing a lubricant, inspect the rate variable (ndm value). Do not just pick based on optimum rate– the oil you pick could not develop an appropriate film at reduced rates.
4. Sealing Arrangements
Select the seal kind based on your environment: contact seals maintain dirt out well however add some friction; non-contact seals work for high speeds but offer much less defense versus contamination; open bearings depend on external securing systems.
Part Five: Life Computation– From Theory to Method
( or Combined Basic Filter Table)
At the end of the day, you need to verify whether your selected bearing will really satisfy the predicted service life. This is where fundamental ranking life computation is available in.
The fundamental rating life L10 formula (ISO 281 criterion):
For round bearings: L10 = (C/P) TWO × (10 ⁶/ 60n) hours
For roller bearings: L10 = (C/P)^(10/3) × (10 SIX/ 60n) hours
Where:
C: basic vibrant tons score (kN)– found in the item directory
P: equal dynamic tons (kN)– takes both radial and axial loads right into account
The equal vibrant lots P is computed as: P = X · Fr + Y · Fa
Fr is the radial lots, Fa is the axial tons
X and Y are coefficients that rely on bearing type and the Fa/Fr proportion– examine the directory for these values
For even more requiring conditions, you can apply adjustment factors: Ln = a1 × a2 × a3 × L10
a1 is the reliability aspect (a1 = 1 for 90% reliability, about 0.21 for 99%)
a2 is the material variable (high-grade bearing steel can get to 1.5 to 2)
a3 is the operating conditions variable (excellent lubrication and cleanliness can offer 2 to 3)
With this calculation, engineers can confirm that the selected bearing fulfills the necessary service life. It likewise aids compare several alternatives and make data-driven decisions.
This overview has strolled you through the complete option course– from evaluating working conditions, to matching the right bearing type, to confirming life expectancy. Recognizing and using this technique will aid you make precise, efficient, and economical bearing decisions throughout a wide range of industrial applications.
