1. Crystallography and Material Basics of Silicon Carbide
1.1 Polymorphism and Atomic Bonding in SiC

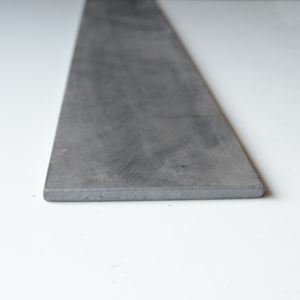

(Silicon Carbide Ceramic Plates)
Silicon carbide (SiC) is a covalent ceramic substance composed of silicon and carbon atoms in a 1:1 stoichiometric proportion, differentiated by its remarkable polymorphism– over 250 recognized polytypes– all sharing strong directional covalent bonds however differing in piling sequences of Si-C bilayers.
The most technologically relevant polytypes are 3C-SiC (cubic zinc blende structure), and the hexagonal kinds 4H-SiC and 6H-SiC, each exhibiting subtle variations in bandgap, electron movement, and thermal conductivity that affect their suitability for specific applications.
The stamina of the Si– C bond, with a bond power of roughly 318 kJ/mol, underpins SiC’s remarkable firmness (Mohs hardness of 9– 9.5), high melting factor (~ 2700 ° C), and resistance to chemical degradation and thermal shock.
In ceramic plates, the polytype is normally selected based upon the meant usage: 6H-SiC prevails in structural applications as a result of its convenience of synthesis, while 4H-SiC controls in high-power electronic devices for its superior cost carrier movement.
The vast bandgap (2.9– 3.3 eV relying on polytype) additionally makes SiC an exceptional electric insulator in its pure type, though it can be doped to operate as a semiconductor in specialized electronic tools.
1.2 Microstructure and Phase Pureness in Ceramic Plates
The efficiency of silicon carbide ceramic plates is critically depending on microstructural features such as grain size, thickness, stage homogeneity, and the visibility of second stages or pollutants.
High-quality plates are usually produced from submicron or nanoscale SiC powders with sophisticated sintering methods, causing fine-grained, totally thick microstructures that make best use of mechanical stamina and thermal conductivity.
Pollutants such as free carbon, silica (SiO â‚‚), or sintering aids like boron or light weight aluminum have to be very carefully managed, as they can form intergranular movies that minimize high-temperature toughness and oxidation resistance.
Residual porosity, also at reduced levels (
